Max working width 最大工作寬度

550mm

Creasing mark thickness 壓痕寬度

0.8/1.2/1.5mm

Creasing way 壓痕方式

Pneumatic 氣動

Trimming length 整理長度

540mm

Trimmng thickness 整理高度

70mm

Trimming way 整理方式

Pneumatic 氣動

Hot pressing height 熱壓高度

285mm

Hot pressing length 熱壓長度

460mm

Hot pressing width 熱壓寬度

550mm

Temperature 溫度

55-110°C

Cold pressing height 冷壓高度

300mm

Cold pressing length 冷壓長度

600mm

Cold pressing width 冷壓寬度

500mm

Max cutting size 最大裁切尺寸

450x450mm

Min cutting size 最小裁切尺寸

50mm

Max cutting thickness 最大裁切厚度

40mm

Pushing paper 推紙方式

Manual operation 手動推紙

Corner cutting thickness 切角厚度

60mm

Angle size 角度

R3-R8

Corner cutting way 切角方式

Pneumatic 氣動

Max cover area 封面最大尺寸

580mm x 370mm

Thickness of paper board 紙板厚度

0.5-6mm

Thickness of backbone 書脊厚度

0-6cm

Way of counterpoint 對位形式

Light

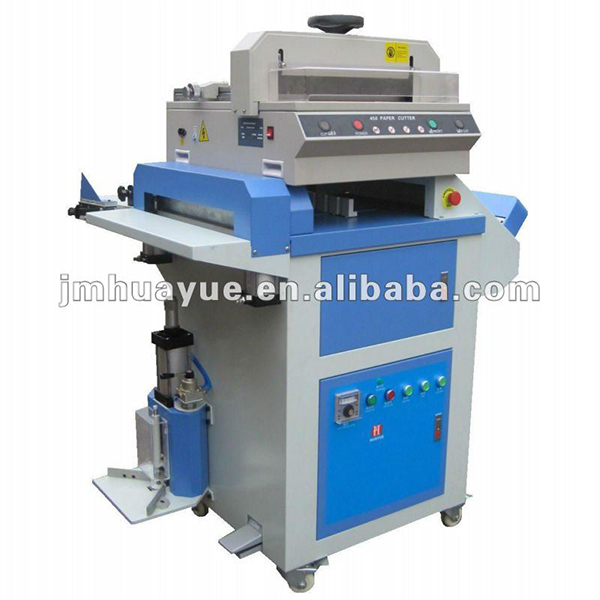

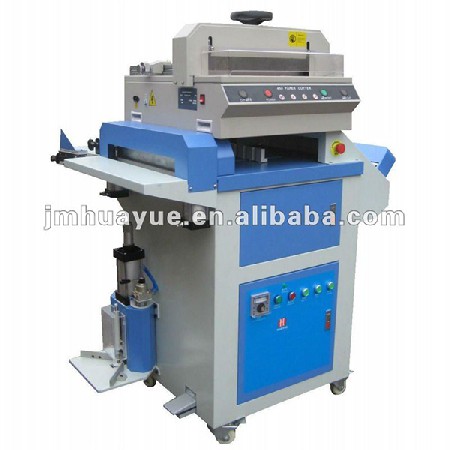

All in one album making machine (DHY-A)

Used for making album, menu and so on

Ten  functions in one machine: creasing, trimming, hot pressing, cold pressing, paper cutting, corner rounding and cover making. There is an mute oil free compressor installed in machine.

It operates easily and high efficiency

用于相冊、菜譜壓痕，10合一，功能有：整理，熱壓平，冷壓平，圓角，封面定位，相冊裁刀，壓槽，封面包邊，封面切角，靜單泵等產品制作

多功能組合，操作方便，簡單
