Specification 規(guī)格

18 inch

24 inch

Max working width 最大淋膜寬度

480mm

630mm

Max working thickness 最大淋膜厚度

5mm

5mm

Max working speed 速度

12m/min

12m/min

Dry way 烘干方式

UV lamp

UV lamp

Power supply 電源

AC220V/50HZ

AC220V/50HZ

Max rate of power 最大功率

2.5KW

4.5KW

Machine dimension 外形尺寸

1000x800x1410mm

1120x1360x1340mm

N/G 凈重/毛重

147.5KG/230KG

183KG/243KG

Packing size 包裝尺寸

1040x840x1550mm

1200x880x1550mm

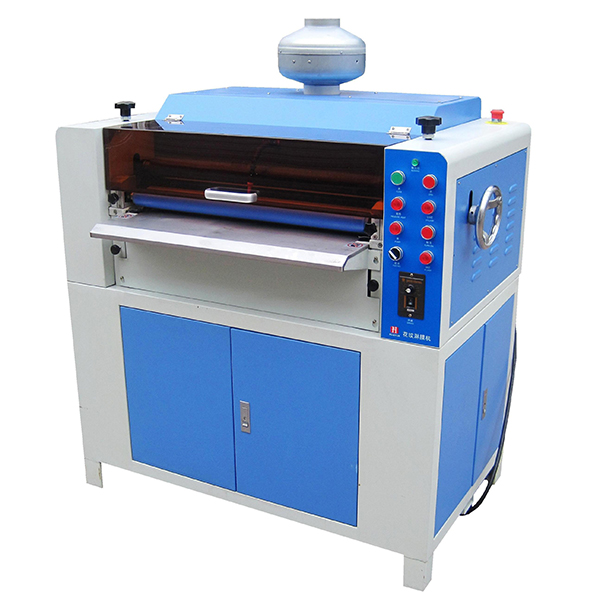

Multiple rollers uv coating machine (FLM-C)

Coating with pattern or plain.

Apply to the surface treatment of paper, cloth and post press plastic.

Multiple pattern rollers are in one machine.

Three pattern rollers are changed by twisting.

It is easy to operate, widely used, low cost, high efficiency and so on.

The speed of machine is adjustable.

The end products are waterproof, wear-resistant and scratch-resistant.

光面淋膜和花紋淋膜兩用

用于紙類，布類或印后塑料類等的一些材料的表面處理

實現(xiàn)了一機多軸的功能，三種花紋一扭更換

操作簡單，方便

操作速度可調(diào)

成品可耐磨，耐刮
