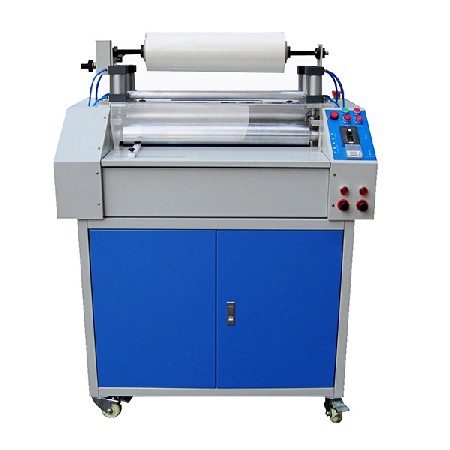

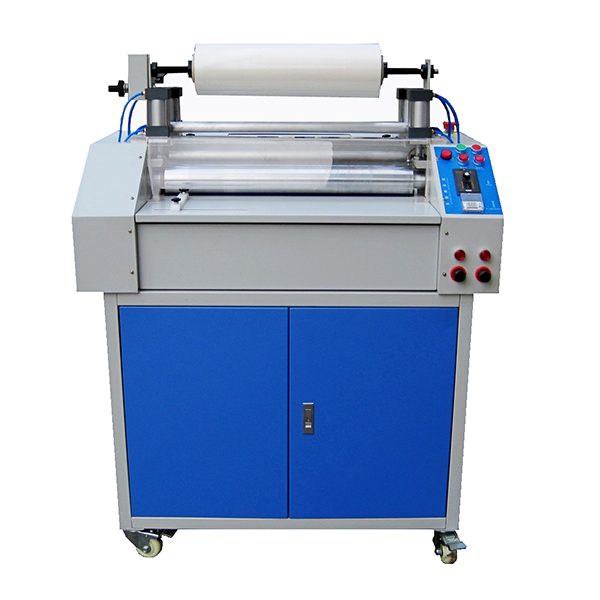

氣動電動花紋覆膜機CFFM-C
2020-11-19 903
|
Specification 規格 |
650 |
800 |
|
Max working width 最大工作寬度 |
630mm |
780mm |
|
Max working thickness 最大工作厚度 |
20mm |
20mm |
|
Temperature range 溫度范圍 |
50-130°C |
50-130°C |
|
Speed 速度 |
14m/min |
14m/min |
|
Max. Press 最大壓力 |
1.0 MPa (10.2kgf/cm2) |
1.0 MPa (10.2kgf/cm2) |
|
Power supply 電源 |
AC220V/50HZ |
AC220V/50HZ |
|
Power consumption 功率 |
2KW |
2.5KW |
|
結構特性： 該機采用鍍熱油管內加熱，發熱均勻，以BOPP薄膜為材料，經復膜壓合后，產品具有透明度高，立體感強，無氣味，粘合性能好，不出現雪花點，不起泡等優點。 可廣泛應用于相片，包裝盒、食品盒、書刊、圖紙等印刷品表面復膜。 光機復膜，壓紋復膜，一次成型，速度快，節省時間，成本。 可更換各種花紋棍，拆裝方便，靈活多變。 設有張力裝置。
Structural characteristics: 1. This machine is using internal heating of plating oil tube, uniform heating. It uses bopp film as materials. After the film laminating, the product is highly transparent, viscous, nontoxic and environment-friendly with a strong 3-D appeal and no smell, snowflake spots and bubbles. 2. It can be widely used in Photos, packing box, food box, books and periodicals. 3. It can laminate both plain and pattern. High efficiency, save time and money. 4. Interchangeable pattern roller. Easy disassembly and creations. Install with tension device. |
||
