柜式花紋淋膜機
2020-12-08 1014
Specification 規格 | 18 inch | 24 inch |
Max working width 最大淋膜寬度 | 480mm | 630mm |
Max working thickness 最大淋膜厚度 | 5mm | 5mm |
Max working speed 速度 | 12m/min | 12m/min |
Dry way 烘干方式 | UV lamp | UV lamp |
Power supply 電源 | AC220V/50HZ | AC220V/50HZ |
Max rate of power 最大功率 | 2.5KW | 4.5KW |
Machine dimension 外形尺寸 | 1000x800x1410mm | 1120x1360x1340mm |
N/G 凈重/毛重 | 147.5KG/230KG | 183KG/243KG |
Packing size 包裝尺寸 | 1040x840x1550mm | 1200x880x1550mm |

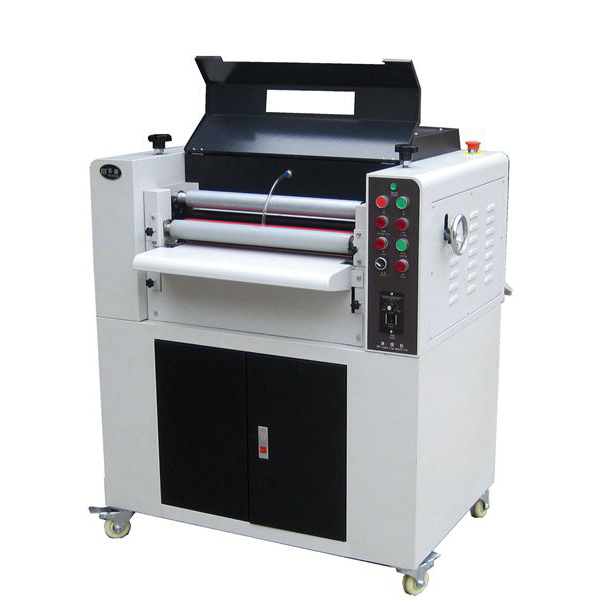

Multiple rollers uv coating machine (FLM-C) Coating with pattern or plain. Apply to the surface treatment of paper, cloth and post press plastic. Multiple pattern rollers are in one machine. Three pattern rollers are changed by twisting. It is easy to operate, widely used, low cost, high efficiency and so on. The speed of machine is adjustable. The end products are waterproof, wear-resistant and scratch-resistant.
光面淋膜和花紋淋膜兩用 用于紙類，布類或印后塑料類等的一些材料的表面處理 實現了一機多軸的功能，三種花紋一扭更換 操作簡單，方便 操作速度可調 成品可耐磨，耐刮 | ||
